Explain the SIP to ISUP Mapping for Server failure message such as 500-504 and 513 Message too large?
rubanroy 05-June-2008 09:02:50 AM

Comments


In short sip explained fully as
500 Server internal error 41 Temporary failure
501 Not implemented 38 Network out of order
502 Bad gateway 38 Network out of order
503 Service unavailable 41 Temporary failure
504 Server time-out 102 Recovery on timer expiry
513 Message Too Large 127 Interworking
Posted by HamidAliKhan


Response received Cause value in the REL
----------------- ---------------

500 Server internal error 41 Temporary failure
501 Not implemented 38 Network out of order
502 Bad gateway 38 Network out of order
503 Service unavailable 41 Temporary failure
504 Server time-out 102 Recovery on timer expiry
513 Message Too Large 127 Interworking (+)
Posted by sagitraz

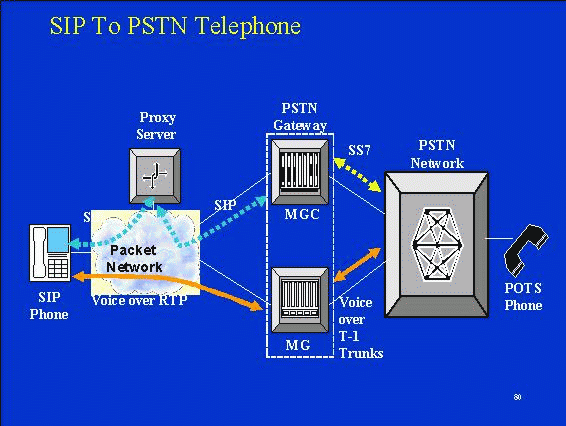

500 Server error happens in the above diagram when Proxy do not respond to PSTN Gateway
Posted by kwwilliams



Posted by kwwilliams


Server Failure
500 Server internal error 41 Temporary failure
501 Not implemented 79 Not implemented, unspecified
502 Bad gateway 38 Network out of order
503 Service unavailable 41 Temporary failure
504 Server time-out 102 Recovery on timer expiry
504 Version Not Supported 127 Interworking (+)
513 Message Too Large 127 Interworking (+)
Posted by jzhang



Posted: 06-June-2008 07:14:07 PM By: jzhang

Server Failure
500 Server internal error 41 Temporary failure
501 Not implemented 79 Not implemented, unspecified
502 Bad gateway 38 Network out of order
503 Service unavailable 41 Temporary failure
504 Server time-out 102 Recovery on timer expiry
504 Version Not Supported 127 Interworking (+)
513 Message Too Large 127 Interworking (+)

Posted: 10-June-2008 10:19:20 PM By: kwwilliams


Posted: 10-June-2008 10:21:24 PM By: kwwilliams

500 Server error happens in the above diagram when Proxy do not respond to PSTN Gateway

Posted: 29-June-2008 05:17:19 AM By: sagitraz

Response received Cause value in the REL
----------------- ---------------

500 Server internal error 41 Temporary failure
501 Not implemented 38 Network out of order
502 Bad gateway 38 Network out of order
503 Service unavailable 41 Temporary failure
504 Server time-out 102 Recovery on timer expiry
513 Message Too Large 127 Interworking (+)

Posted: 19-March-2009 02:33:41 PM By: HamidAliKhan

In short sip explained fully as
500 Server internal error 41 Temporary failure
501 Not implemented 38 Network out of order
502 Bad gateway 38 Network out of order
503 Service unavailable 41 Temporary failure
504 Server time-out 102 Recovery on timer expiry
513 Message Too Large 127 Interworking
